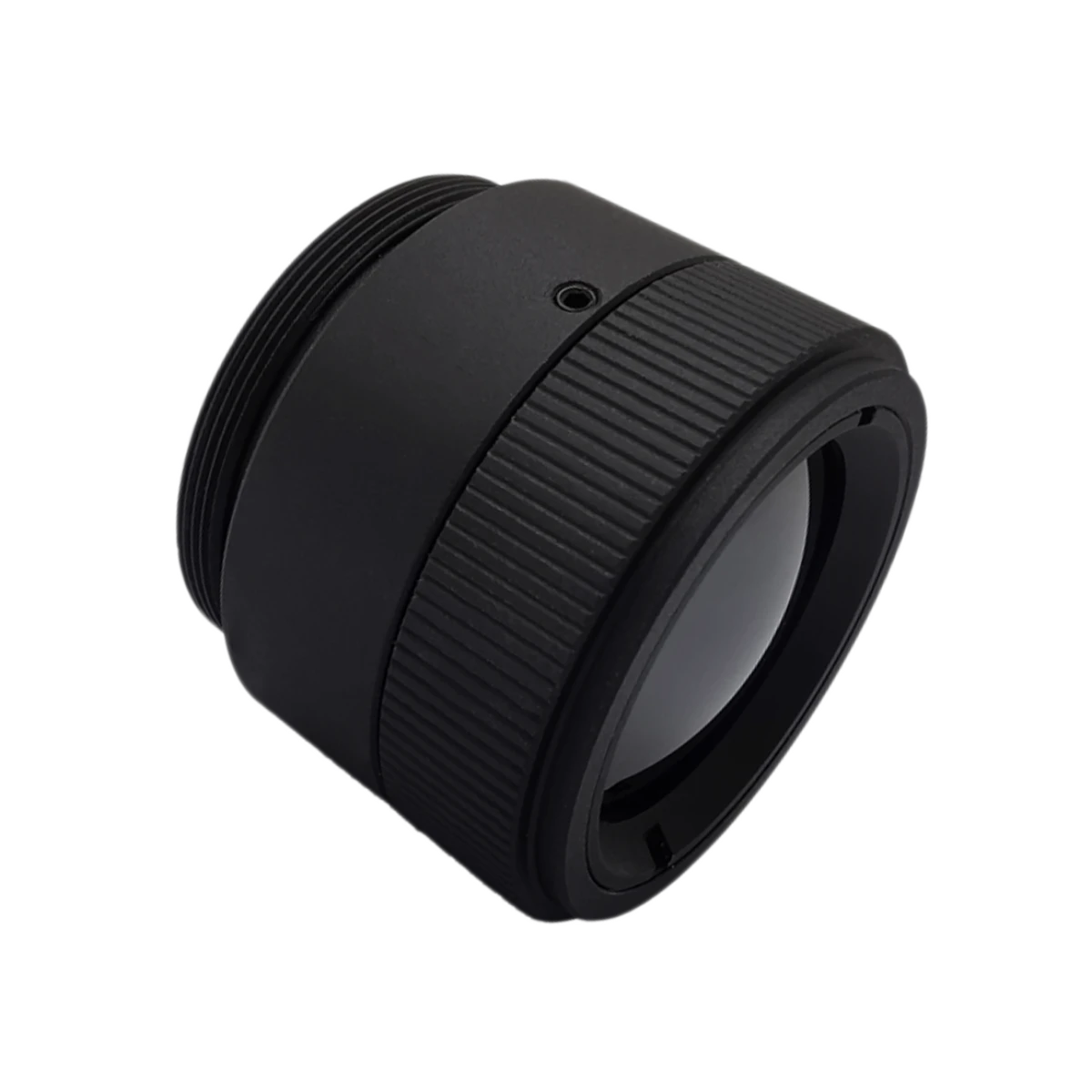

Manual Focus LWIR Lens 25mm f/1.0
The GLM2510ZD deliver high-performance thermal imaging across diverse applications. Optimized for the 8-12µm spectral range, it features precise manual focus adjustment for optimal clarity at varying distances. Compatible with uncooled infrared detectors 640×512 resolution, it provides excellent transmission and resolution, making it ideal for thermal cameras, handheld IR devices, security systems, industrial inspection, and R&D applications.
- Interface: thread
- High sensitivity
- Compact, lightweight and durable
- Low refraction and reflection
Specifications
| HFOV | 160x120 | 320x240 | 336x256 | 384x288 | 640x480 | 640x512 |
| 25µm | 9.1 ° | 18.2 ° | 19.1 ° | 21.7 ° | ||
| 17µm | 6.2 ° | 12.4 ° | 13.0 ° | 14.9 ° | 24.6 ° | 24.6 ° |
| 12µm | 4.4 ° | 8.8 ° | 9.2 ° | 10.5 ° | 17.5 ° | 17.5 ° |
Optical
|
Focal Length
|
F/#
|
Wavelength
|
|
25mm
|
1.0
|
8-12μm
|
Mechanical
|
Interface
|
Focus Mechanism
|
Dimensions (mm)
|
Weight
|
|
Thread
|
Manual
|
Ø38×35.5
|
59.4g
|
Environmental
|
Operating Temperature
|
Storage Temperature
|
Front Element Sealing
|
External Coating
|
|
-40°C to +60°C
|
-40°C to +80°C
|
IP67
|
DLC
|
