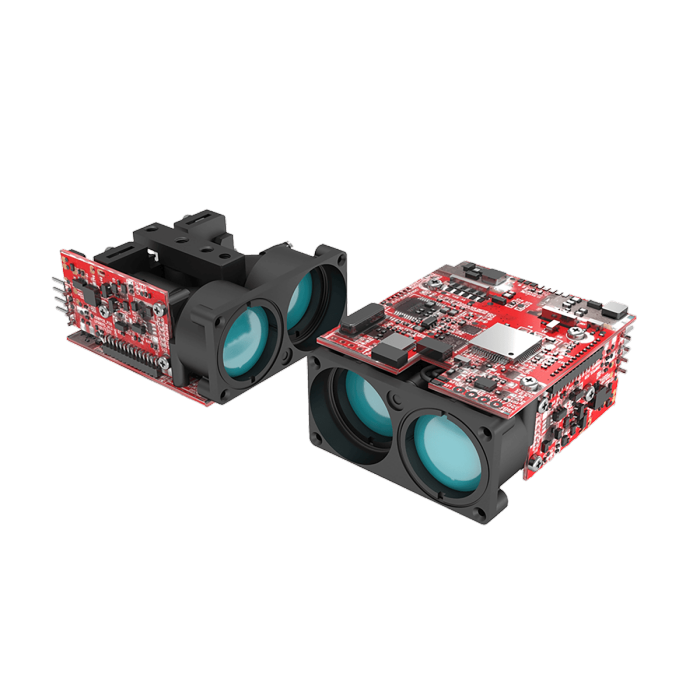

LRD Laser Ranger Finder

LRD Laser Ranger Finder
CategoriesOther Thermal Infrared&Night Vision Components
BrandQuanhom Custom Infrared Optics & Infrared Lens
ModelLRD
Power SupplyCR2(3V) lithium battery
Resolution Ratio0.1m
Operating Temperature-30℃-+50℃
Update Time2021-06-16
Detail Information
  • Specifications
  • Download file
  • FAQ
  • Video
  • Applications
Specifications

Performance Indicators

Range[m]
5-600/1000/1500
Range Measuring Accuracy[m]
>5≤100   ±0.5
>100≤400   ±1
>400   100±1
Resolution Ratio
0.1m
Laser Wavelength(class 1 safe laser)
905nm
Divergence Angle
3mrad
Operating Temperature
-30℃-+50
Product Weight
36.5g
Product Size[mm]
57*42*26
Power Supply
CR2(3V) lithium battery
TTL serial port(5V)
Baud Rate
9600/115200bps
Download document
file name
type
download
Laser Ranger Finder
PDF
FAQ
- Why the lens autofocus is not clear?

There are many reasons why the lens autofocus is not clear, the main reasons are as follows which can be checked one by one:

1. During the focusing process, there is a large moving target in the lens screen (occupying more than 1/3 of the picture), can be refocused;

2.If the lens is used for a long time, the gear, CAM and other transmission parts wear and tear, resulting in unclear focus, the module or control board parameters can be adjusted to make the focus clear again;

3. Hardware problems, such as potentiometer does not work, replace the hardware that does not work.

- Why can not the lens control board or module connect to the computer?

There are many reasons why the lens control board and the computer cannot be connected, the main reasons are as follows which can be checked one by one:

1. Replace the USB port, which may be incompatible with the data cable;

2.Replace the data cable,maybe the data cable is not compatible with the computer or the cable data is wrongly selected;

3. Confirm the wiring of the module or the control board, maybe the wiring is loose;

4.Module or control board hardware problem, replace the hardware.
