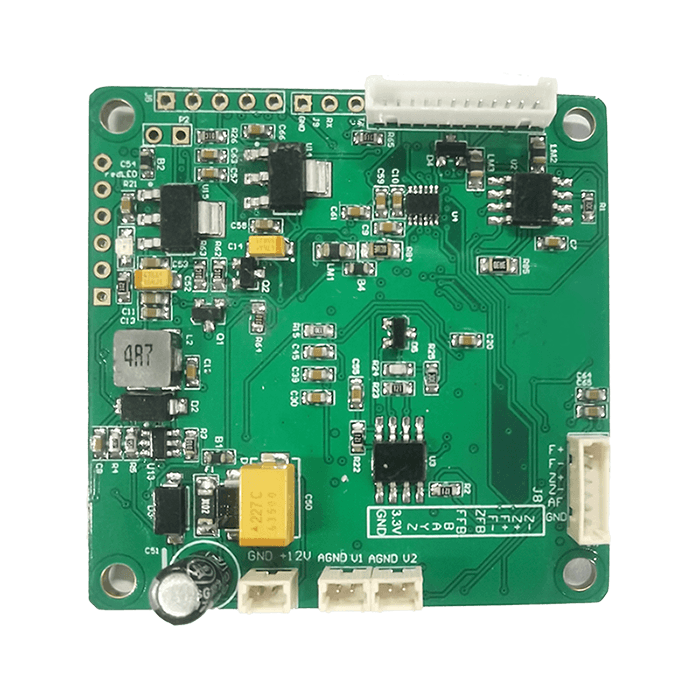

Y02 Autofocus Board for Continuous Zoom Lens

Home / All / Thermal IR Optronics Related Components / IR Zoom lens Components &Accessories /

Y02 Autofocus Board for Continuous Zoom Lens

Y02 Autofocus Board for Continuous Zoom Lens

Y02 Autofocus Board for Continuous Zoom Lens
CategoriesIR Zoom lens Components &Accessories
BrandQuanhom Optronics
ModelY02
Operating Temperature-40℃~+75℃
Operating Voltage12V
Communication InterfaceRS422
Update TimeMar 29,2024
Detail Information
  • Specifications
  • Download file
  • FAQ
  • Video
  • Applications
Specifications

Optical

Work Voltage
12V
Power Dissipation
≤1.5W
Focusing Accuracy
≥90%

Mechanical

Operating Temperature
-40℃ to +75
Dimensions(mm)
50X50X10
Serial Port
RS422
Reset function
Yes
Download document
file name
type
download
PDF
FAQ
- Why the lens autofocus is not clear?

There are many reasons why the lens autofocus is not clear, the main reasons are as follows which can be checked one by one:

1. During the focusing process, there is a large moving target in the lens screen (occupying more than 1/3 of the picture), which can be refocused;

2. If the lens is used for a long time, the gear, CAM and other transmission parts wear and tear, resulting in unclear focus, the module or control board parameters can be adjusted to make the focus clear again;

3. Hardware problems, such as the potentiometer does not work, replace the hardware that does not work.

- Why cannot the lens control board or module connect to the computer?

There are many reasons why the lens control board and the computer cannot be connected, the main reasons are as follows which can be checked one by one:

1. Replace the USB port, which may be incompatible with the data cable;

2. Replace the data cable,maybe the data cable is not compatible with the computer or the cable data is wrongly selected;

3. Confirm the wiring of the module or the control board, maybe the wiring is loose;

4. Module or control board hardware problem, replace the hardware.

APPLICATIONS
Airborne
Enhanced Vision
Homeland Security
Maritime & Naval
Security & Surveillance
Thermal Imaging Body Temperature Screening
