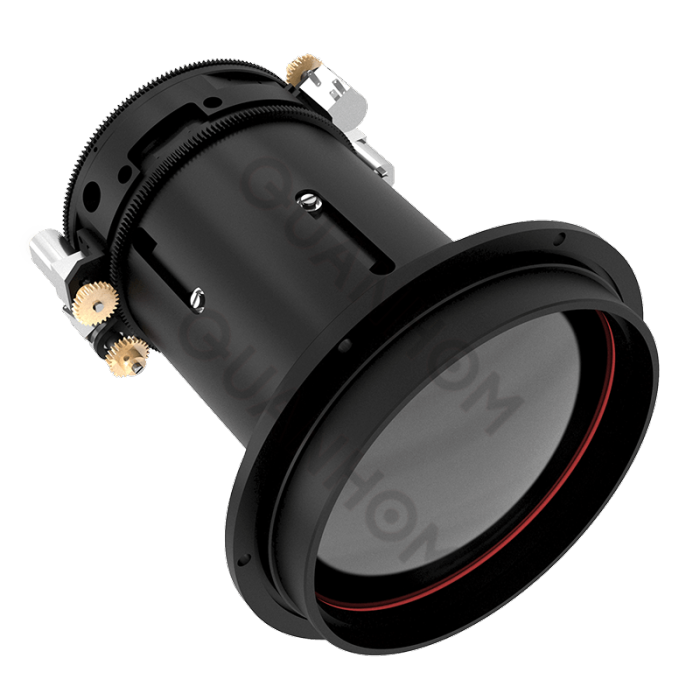

IR Zoom Lens 15-120mm f/0.8-1.2
| Categories | Continuous Zoom LWIR Lens |
|---|---|
| Brand | Quanhom Optronics |
| Model | GCZ81512 |
| LWIR Lens | 15-120mm f/0.8-1.2 |
| Applications | Security and Surveillance |
| Mechanical Interface | Thread |
| Update Time | Apr 25,2024 |
Detail Information
- Specifications
- Detail image
- Download file
- FAQ
- Video
- Applications
Specifications
|
HFOV
|
160x120
|
320x240
|
336x256 | 384x288 | 640x480 | 640x512 | 1024x768 |
1280x1024
|
35μm | / | / | / | 6.4°-48.3° | / | / | / | / |
25μm | / | 3.8°-29.9° | / | 4.6°-35.5° | / | / | / | / |
|
17μm
|
/
|
/
|
2.7°-21.6° | 3.1°-24.6° | 5.2°-39.9° | 5.2°-39.9° | / |
/
|
|
12μm
|
/
|
/
|
1.9°-15.3° | 2.2°-17.5° | 3.7°-28.7° | 3.7°-28.7° | / |
/
|
Optical |
|||
|
Focal Length[mm]
|
15-120
|
||
|
F/#
|
0.8-1.2
|
||
|
Wavelength
|
8-12μm
|
||
Focus Range | 3.0m-Infinity | ||
Format | Φ16.8 | ||
Mechanical |
|||
Interface | Flange | ||
|
Motorized
|
||
|
|
||
|
Weight
|
|
||
Electrical & Communications |
|||
|
Power Input
|
|
||
Environmental |
|||
|
Operating Temperature
|
-40℃ to +60℃
|
||
|
Storage Temperature
|
-45℃ to +80℃
|
||
|
External Coating
|
DLC
|
||
Front Element Sealing | IP67 | ||
Download document
|
file name
|
type |
download
|
||
PDF |
|
|||
FAQ
Why did the lens adjust to the clearest state in the morning, but found that the picture became unclear when I went to see it at noon?
The effect of temperature on the lens is obvious.
1. The lens will expand and contract due to the change of temperature. Although the change degree of the lens is very small, it has a huge impact on the optical path.
2. Mechanical structure is subject to thermal expansion and cold contraction due to temperature changes. The deformation of mechanical structure leads to changes in the position of the lens, resulting in changes in the optical path and finally causing the picture to be unclear.
Although both are small changes, they are happening at the same time, which leads to the obvious change of the optical path.
APPLICATIONS
Homeland Security
Maritime & Nava
Security & Surveillance
