Motorized Continuous Zoom Infrared Lens 30-120mm f/0.9-1.1

Home / all / LWIR Lens | Infrared Optics / Continuous Zoom LWIR Lens /

Motorized Continuous Zoom Infrared Lens 30-120mm f/0.9-1.1

Motorized Continuous Zoom Infrared Lens 30-120mm f/0.9-1.1

Motorized Continuous Zoom Infrared Lens 30-120mm f/0.9-1.1
CategoriesContinuous Zoom LWIR Lens
BrandQuanhom Optronics
ModelGCZ43011D
LWIR Lens30-120mm f/0.9-1.1
ApplicationsSecurity and Surveillance
Focus MechanismMotorized
Update Time2022/8/12
Detail Information
  • Specifications
  • Download file
  • FAQ
  • Video
  • Applications
Specifications
HFOV
160x120
320x240
336x256
384x288
640x480
640x512
1024x768
1280x1024
25μm
1.9°-7.6°
3.8°-15.2°
4°-15.9°
4.6°-18.2°
/
/
/
/
17μm
1.3°-5.2°
2.6°-10.4°
2.7°-10.9°
3.1°-12.4°
5.2°-20.6°
5.2°-20.6°
/
/
12μm
0.9°-3.7°
1.8°-7.3°
1.9°-7.7°
2.2°-8.8°
3.7°-14.6°
3.7°-14.6°
/
/

Optical

Focal Length[mm]
30-120
F/#
0.9-1.1
Average Transmission
≥80%

Foucs Range

30mm: 3m-Infinity;120mm: 15m-Infinity

Wavelength
8-12µm

Mechanical

Interface
Flange
Focus Mechanism
Motorized

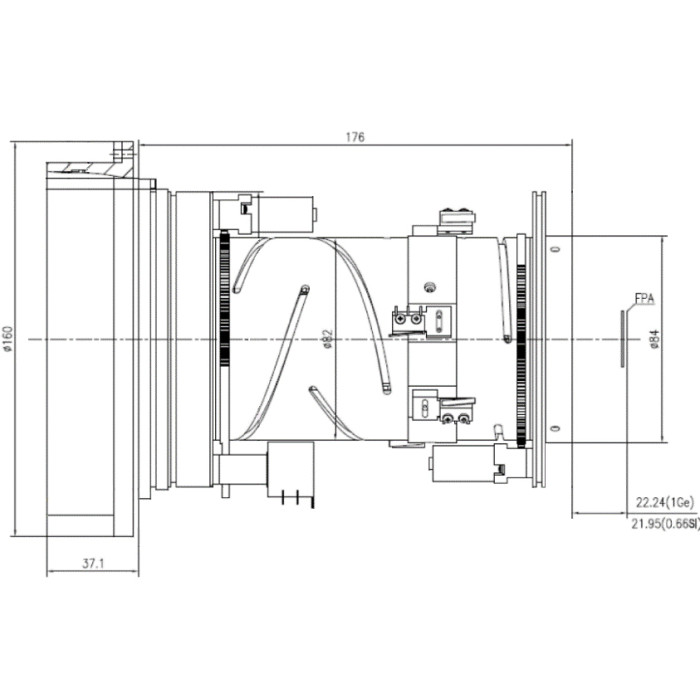

Dimensions [mm]
Φ143x213.1(Front flange Φ160)
Weight
<2500g

Electrical & Communication

Power Input

DC 6-12V

Communications

NA

Environmental

Operating Temperature
-40℃ to +60
Storage Temperature
-40℃ to +80
External Coating
DLC
Front Element Sealing
IP67
Download document
FAQ
- Why is the lens autofocus not clear?

There are many reasons why the lens autofocus is not clearl; the main reasons are as follows which can be checked one by one:

1. During the focusing process, if there is a large moving target in the lens screen (occupying more than 1/3 of the picture), just refocus;

2. If the lens is used for a long time, and the gear, CAM and other transmission parts wear and tear, resulting in unclear focus, adjust the module or control board parameters to make the focus clear again;

3. For hardware problems such as the potentiometer not working, replace the hardware that does not work.

- Why can not the lens control board or module connect to the computer?

There are many reasons why the lens control board and the computer cannot be connected; the main reasons are as follows which can be checked one by one:

1. Replace the USB port, which may be incompatible with the data cable;

2. Replace the data cable, which may be incompatible with the computer or of the wrong type;

3. Check if the wiring of the module or the control board is loose;

4. For module or control board hardware problems, replace the hardware.
