Off-the-shelf & Custom Infrared Lens, thermal imaging cameras & systems components
Quanhom Technology Co., LTD is a company engaged in the area of development and production of thermal infrared optics. The high precision product range includes infrared lenses assemblies of SWIR/MWIR/LWIR , eyepieces, infrared lens elements, etc.
Find Your Product
Whatever your requirements, our know-how, expert team, and technology are all there, ready to provide you with the precise, fully-tailored solution you need.
-
Please send your message to us
- Name
- Tel
- *Title
- *Content

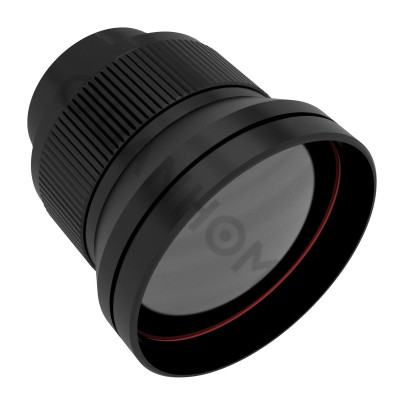

Manual LWIR Lens (1-FOV)
Advanced optical& mechanical design for keeping image Sharpe and ruggedized quality, no matter after strong shock or changing uncooled thermal imaging cameras
| Part Number | Wavelength(μm) | Focal length(mm) | Focal type | F# | Detector | Learn more |
| GLM05310SA | 8-12 | 4.3 | Manual | 1.0 | 384x288, 12/17 | ☛ |
| GLM04810 | 8-12 | 4.8 | Manual | 1.0 | 640x512, 12/17 | ☛ |
| GLM07508 | 8-12 | 7.5 | Manual | 0.8 | 640x512, 12/17 | ☛ |
| GLM1010SA | 8-12 | 10 | Manual | 1.0 | 384x288, 12/17 | ☛ |
| GLM1010 | 8-12 | 10 | Manual | 1.0 | 640x512, 12/17 | ☛ |
| GLM1110D | 8-12 | 11 | Manual | 1.0 | 640x512, 12/17 | ☛ |
| GLM1111YD | 8-12 | 11 | Manual | 1.1 | 640x512, 12/17 | ☛ |
| GLM14810A | 8-12 | 14.8 | Manual | 1.0 | 384x288, 12/17 | ☛ |
| GLM1510SA | 8-12 | 15 | Manual | 1.0 | 384x288, 12/17 | ☛ |
| GLM1511YD | 8-12 | 15 | Manual | 1.1 | 640x512, 12/17 | ☛ |
| GLM2010A | 8-12 | 20 | Manual | 1.0 | 640x512, 12/17 | ☛ |
| GLM2510 | 8-12 | 25 | Manual | 1.0 | 640x512, 12/17 | ☛ |
| GLM2510S | 8-12 | 25 | Manual | 1.0 | 384x288, 12/17 | ☛ |
| GLM2510KA | 8-12 | 25 | Manual | 1.0 | 1280x1024, 12 | ☛ |
| GLM3510D | 8-12 | 35 | Manual | 1.0 | 640x512, 12/17 | ☛ |
| GLM3510KD | 8-12 | 35 | Manual | 1.0 | 1024x768, 12/17 | ☛ |
| GLM3512 | 8-12 | 35 | Manual | 1.2 | 640x512, 12/17 | ☛ |
| GLM4010D | 8-12 | 40 | Manual | 1.0 | 640x512, 12/17 | ☛ |
| GLM4208D | 8-12 | 42 | Manual | 0.8 | 640x512, 12/17 | ☛ |
| GLM5010D | 8-12 | 50 | Manual | 1.0 | 640x512, 12/17 | ☛ |
| GLM5010SD | 8-12 | 50 | Manual | 1.0 | 384x288, 12/17 | ☛ |
| GLM5012K | 8-12 | 50 | Manual | 1.2 | 1024x768, 12/17 | ☛ |
| GLM5410ZHD | 8-12 | 54 | Manual | 1.0 | 640x512, 12/17 | ☛ |
| GLM6010D | 8-12 | 60 | Manual | 1.0 | 640x512, 12/17 | ☛ |
| GLM6012D | 8-12 | 60 | Manual | 1.2 | 640x512, 12/17 | ☛ |
| GLM7510 | 8-12 | 75 | Manual | 1.0 | 640x512, 12/17 | ☛ |
| GLM7512D | 8-12 | 75 | Manual | 1.2 | 640x512, 12/17 | ☛ |
| GLM75125D | 8-12 | 75 | Manual | 1.25 | 640x512, 12/17 | ☛ |
| GLM10010KD | 8-12 | 100 | Manual | 1.0 | 1280x1024, 12 | ☛ |
| GLM10010D | 8-12 | 100 | Manual | 1.0 | 640x512, 12/17 | ☛ |
| GLM10012YD | 8-12 | 100 | Manual | 1.2 | 640x512, 12/17 | ☛ |
| GLM13011K | 8-12 | 130 | Manual | 1.1 | 1280x1024, 12 | ☛ |
| GLM15012D | 8-12 | 150 | Manual | 1.2 | 640x512, 12/17 | ☛ |
48 products found
LWIR Manual Focus Lens 75mm f/1.2,can be applied to Hand-held Thermal Imaging Devices.
LWIR Manual Focus Lens 4.8mm f/1.0,can be applied to Hand-held Thermal Imaging Devices.
LWIR Manual Focus Lens 5.3mm f/1.0, can be applied to Hand-held Thermal Imaging Devices.
Manual Focus IR Lens 7.5mm f/0.8, can be applied to Homeland Security.
Athermalized Manual Focus IR Lens 10mm f/1.0,can be applied to Homeland Security.
LWIR Manual Focus Lens 11mm f/1.0, can be applied to Hand-held Thermal Imaging Devices.
LWIR Manual Focus Lens 10mm f/1.0, can be applied to Hand-held Thermal Imaging Devices.
Optical Manual Infrared Lens | LWIR Lens 14.8mm f/1.0,can be applied to Thermal Imaging Body Temperature Screening.
LWIR Manual Focus Lens 11mm f/1.1,can be applied to Hand-held Thermal Imaging Devices.
LWIR Manual Focus Lens 15mm f/1.0, can be applied to Hand-held Thermal Imaging Devices.
LWIR Manual Focus Lens 15mm f/1.1, can be applied to Hand-held Thermal Imaging Devices.
LWIR Manual Focus Lens 20mm f/1.0, can be applied to Hand-held Thermal Imaging Devices.
LWIR Manual Focus Lens 25mm f/1.0, can be used to airborne, thermal imaging body temperature, hand-held thermal imagers.
Athermalized Manual Focus IR Lens 25mm f/1.0,can be applied to Hand-held Thermal Imaging Devices.
Optical Manual Infrared Lens | LWIR Lens 25mm f/1.0,can be applied to Thermal Imaging Body Temperature Screening.
Athermalized Manual Focus IR Lens,can be applied to Homeland Security.
LWIR Manual Focus Lens 35mm f/1.0, can be used to Airborne,Thermal Imaging Body Temperature, Hand-held Thermal Imagers.
Athermalized Manual Focus IR Lens 35mm f/1.0,can be applied to Hand-held Thermal Imaging Devices.
LWIR Manual Focus Lens 40mm f/1.0, can be used to Airborne,Thermal Imaging Body Temperature, Hand-held Thermal Imagers.
LWIR Manual Focus Lens 42mm f/0.8, can be used to Airborne,Thermal Imaging Body Temperature, Hand-held Thermal Imagers.
LWIR Manual Focus Lens 50mm f/1.0,can be applied to Hand-held Thermal Imaging Devices.
Athermalized Manual Focus IR Lens 50mm f/1.0,can be applied to Homeland Security.
LWIR Manual Focus Lens 50mm f/1.2, can be used to Airborne,Thermal Imaging Body Temperature, hand-held thermal imagers.
