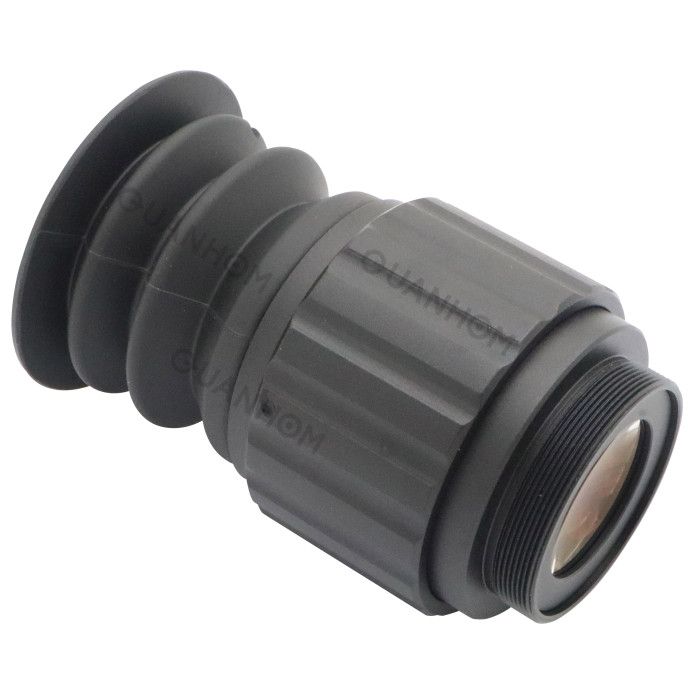

Infrared Lens Eyepiece|Eyepiece Focal Length 21mm Magnifications = 12×

Infrared Lens Eyepiece|Eyepiece Focal Length 21mm Magnifications = 12×
Infrared Lens Eyepiece|Eyepiece Focal Length 21mm Magnifications = 12×Infrared Lens Eyepiece|Eyepiece Focal Length 21mm Magnifications = 12×
CategoriesQE/GE Eyepieces (Oculars)
BrandQuanhom Optronics
ModelGE21C
Focal Length21mm
Magnification12×
Eye Relief30mm
Pupil Diameter8mm
Update TimeJul 17,2024
Detail Information
  • Specifications
  • Download file
  • FAQ
  • Video
  • Applications
Specifications

Technical Specifications

Focal Length
21mm
Magnification
12×
Eye Relief
30mm
Pupil Diameter
8mm
OLED Size
0.71″
Diopter
+/-5 SD
Weight
<236g
Download document
file name
type
download
PDF
FAQ
- Why the lens autofocus is not clear?

There are many reasons why the lens autofocus is not clear, the main reasons are as follows which can be checked one by one:

1. During the focusing process, there is a large moving target in the lens screen (occupying more than 1/3 of the picture), can be refocused;

2.If the lens is used for a long time, the gear, CAM and other transmission parts wear and tear, resulting in unclear focus, the module or control board parameters can be adjusted to make the focus clear again;

3. Hardware problems, such as potentiometer does not work, replace the hardware that does not work.

- Why can not the lens control board or module connect to the computer?

There are many reasons why the lens control board and the computer cannot be connected, the main reasons are as follows which can be checked one by one:

1. Replace the USB port, which may be incompatible with the data cable;

2.Replace the data cable,maybe the data cable is not compatible with the computer or the cable data is wrongly selected;

3. Confirm the wiring of the module or the control board, maybe the wiring is loose;

4.Module or control board hardware problem, replace the hardware.

APPLICATIONS
Hand-held Thermal Imaging Devices
