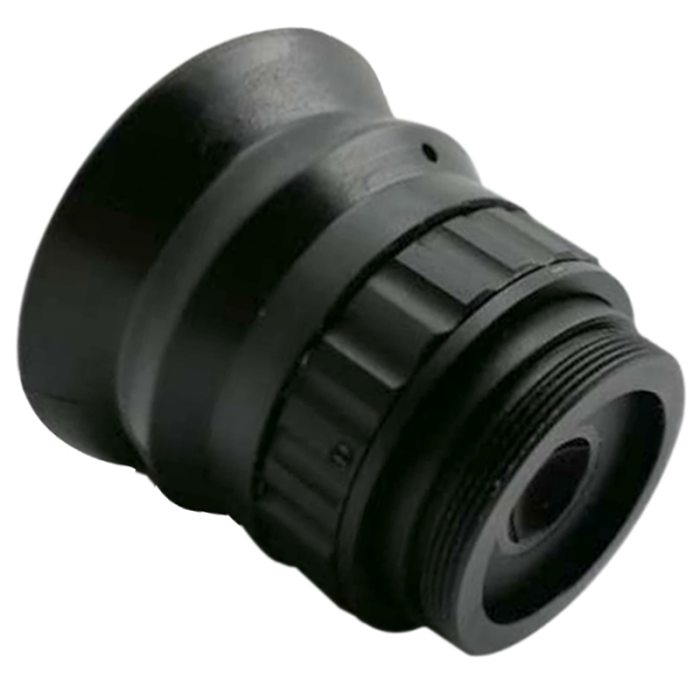

Infrared Lens Eyepiece|Eyepiece Focal Length 15.6mm Magnifications = 16×

Home / All / Other Opto Infrared Components / QE/GE Eyepieces (Oculars) /

Infrared Lens Eyepiece|Eyepiece Focal Length 15.6mm Magnifications = 16×

Infrared Lens Eyepiece|Eyepiece Focal Length 15.6mm Magnifications = 16×

Infrared Lens Eyepiece|Eyepiece Focal Length 15.6mm Magnifications = 16×
CategoriesQE/GE Eyepieces (Oculars)
BrandQuanhom Optronics
ModelGE16M2
Focal Length15.6mm
Magnification16×
Eye Relief22mm
Pupil Diameter7mm
Update TimeMar 29,2024
Detail Information
  • Specifications
  • Download file
  • FAQ
  • Video
  • Applications
Specifications

Technical Specifications

Focal Length
15.6mm
Magnification
16×
Eye Relief
22mm
Pupil Diameter
7mm
OLED Size
0.4″
Diopter
+/-5 SD
Weight
<45g
Download document
FAQ
file name
type
download
PDF
- Why the lens autofocus is not clear?

There are many reasons why the lens autofocus is not clear, the main reasons are as follows which can be checked one by one:

1. During the focusing process, there is a large moving target in the lens screen (occupying more than 1/3 of the picture), which can be refocused;

2. If the lens is used for a long time, the gear, CAM and other transmission parts wear and tear, resulting in unclear focus, the module or control board parameters can be adjusted to make the focus clear again;

3. Hardware problems, such as potentiometer does not work, replace the hardware that does not work.

- Why cannot the lens control board or module connect to the computer?

There are many reasons why the lens control board and the computer cannot be connected, the main reasons are as follows which can be checked one by one:

1. Replace the USB port, which may be incompatible with the data cable;

2. Replace the data cable, maybe the data cable is not compatible with the computer or the cable data is wrongly selected;

3. Confirm the wiring of the module or the control board, maybe the wiring is loose;

4. Module or control board hardware problem, replace the hardware.

VIDEO
APPLICATIONS
Hand-held Thermal Imaging Devices
