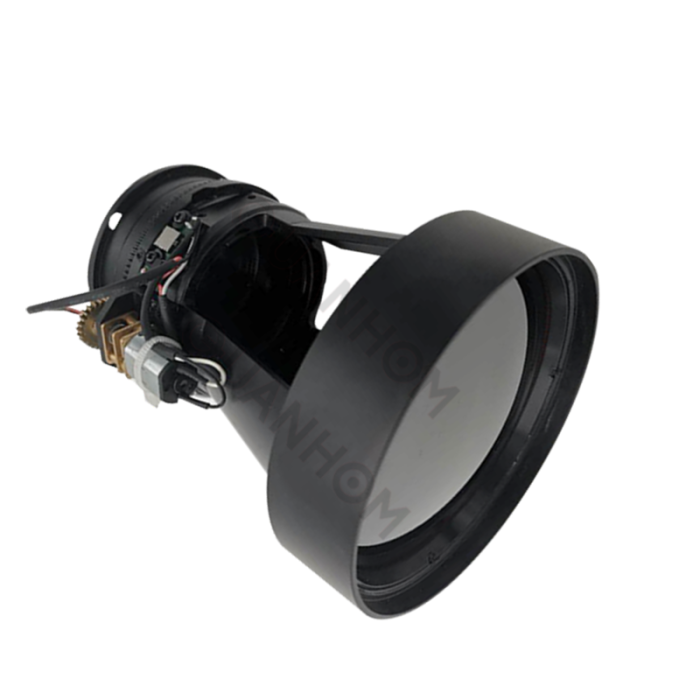

Motorized Focus IR Lens 75mm f/1.0

Motorized Focus IR Lens 75mm f/1.0
CategoriesMotorized LWIR Lens (1-FOV)
BrandQuanhom Optronics
ModelGLE7510U
Motorized Focus IR Lens75mm f/1.0
ApplicationsSecurity and Surveillance
InterfaceFlange
Focus MechanismMotorized
Update TimeDec 12,2024
Detail Information
  • Specifications
  • Download file
  • FAQ
  • Video
  • Applications
Specifications
HFOV
160x120
320x240
336x256
384x288
640x480
640x512
1024x768
1280x1024
25μm
3.1°
6.1°
6.4°
7.3°
/
/
/
/
17μm
2.1°
4.2°
4.4°
5.0°
8.3°
8.3°
/
/
12μm
1.5°
2.9°
3.1°
3.5°
5.9°
5.9°
/
/

Optical

Focal Length[mm]
75
F/#
1.0
Format
Φ12
Focus Range
5m-Infinity

Mechanical

Interface
Flange
Focus Mechanism
Motorized
Dimensions [mm]
Φ106x107.88
Weight
≤402g

Electrical & Communications

Powe Input(Dafault Motor)
DC 12V 0.15A
Communications(Potentiometer/Encoder Optional)
NA

Environmental

Operating Temperature(Depends on Motor)
-40℃ to +60
Storage Temperature
-50℃ to +80
External Coating
DLC/AR
Front Element Sealing
IP67
Download document
FAQ
- Why the lens autofocus is not clear?

There are many reasons why the lens autofocus is not clear, the main reasons are as follows which can be checked one by one:

1. During the focusing process, there is a large moving target in the lens screen (occupying more than 1/3 of the picture), can be refocused;

2.If the lens is used for a long time, the gear, CAM and other transmission parts wear and tear, resulting in unclear focus, the module or control board parameters can be adjusted to make the focus clear again;

3. Hardware problems, such as potentiometer does not work, replace the hardware that does not work.

- Why can not the lens control board or module connect to the computer?

There are many reasons why the lens control board and the computer cannot be connected, the main reasons are as follows which can be checked one by one:

1. Replace the USB port, which may be incompatible with the data cable;

2.Replace the data cable,maybe the data cable is not compatible with the computer or the cable data is wrongly selected;

3. Confirm the wiring of the module or the control board, maybe the wiring is loose;

4.Module or control board hardware problem, replace the hardware.

APPLICATIONS
Airborne
Homeland Security
Maritime & Naval Surveillance
Security & Surveillance
Thermal Imaging Body Temperature Screening
