LWIR Continuous Zoom Lens 20-100mm f/0.85-1.2

Home / all / LWIR Lens | Infrared Optics / HD Lenses /

LWIR Continuous Zoom Lens 20-100mm f/0.85-1.2

LWIR Continuous Zoom Lens 20-100mm f/0.85-1.2

LWIR Continuous Zoom Lens 20-100mm f/0.85-1.2
LWIR Continuous Zoom Lens 20-100mm f/0.85-1.2LWIR Continuous Zoom Lens 20-100mm f/0.85-1.2LWIR Continuous Zoom Lens 20-100mm f/0.85-1.2LWIR Continuous Zoom Lens 20-100mm f/0.85-1.2LWIR Continuous Zoom Lens 20-100mm f/0.85-1.2
CategoriesHD Lenses
BrandQuanhom Optronics
ModelGCZ52012KD
LWIR Lens12.5-50mm f/0.85-1.2
ApplicationsSecurity and Surveillance
Focus MechanismMotorized
Update Time2022/8/8
Detail Information
  • Specifications
  • Download file
  • FAQ
  • Video
  • Applications
Specifications
HFOV
160x120
320x240
336x256
384x288
640x480
640x512
1024x768
1280x1024
25μm
/
/
/
5.5°-27°
/
/
/
/
17μm
/
/
/
3.7°-18.5°
/
6.2°-30.4°
1°-5°
/
12μm
/
/
/
/
/
4.4°-21.7°
7.0°-34.2°
/

Optical

Focal Length[mm]
20-100
F/#
0.85-1.2
Wavelength
8-14μm
Image Dimension
Φ15.5

Mechanical

Focus Mechanism
Motorized

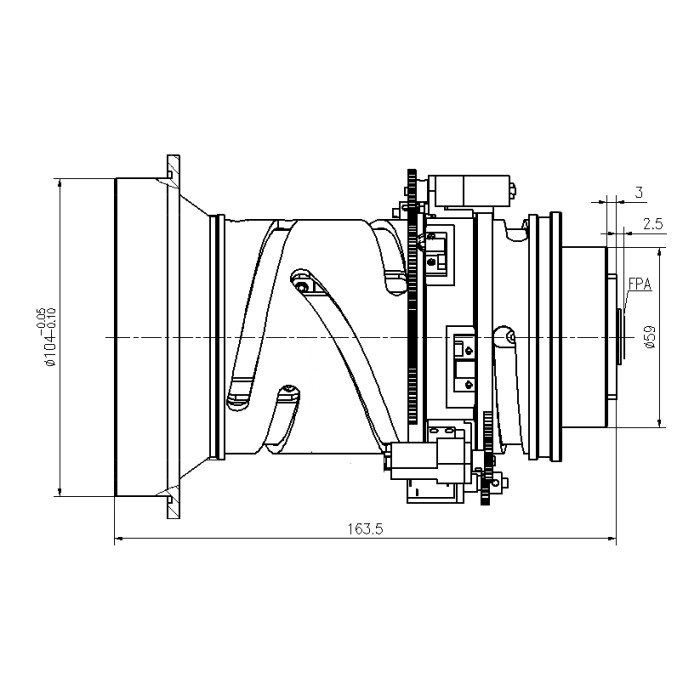

Dimensions [mm]
Ø104x143.5(Front flange Φ108.4)
Weight
<1.24kg

Electrical & Communications

Power Input
DC 6-12V
Communications
NA

Environmental

Operating Temperature
-40℃ to +60
Storage Temperature
-40℃ to +80
External Coating
DLC
Front Element Sealing
IP67
Download document
FAQ
What are the advantages of lens GCZ52012KD?

1. Support HD resolution movement.

2. Can have a clear image in the focal length range of 20mm-100mm.

3. The lens has a ready-made mounting flange for easy installation.

4. Our lens supports cores control and external control panel control.

The lens in front of this lens is exposed for long time to be able to wear away seriously.

The surface of the first lens of our sub-lens is covered with a DLC film, which is highly hard, can well protect the first lens, and has almost no effect on the transmittance of radiation, thereby increasing the service life of the lens.

VIDEO
APPLICATIONS
Homeland Security
Maritime & Naval
Security & Surveillance
