Fixed Athermalized IR Lens 20mm f/1.1

Home / all / LWIR Lens | Infrared Optics / Fixed Athermalized LWIR Lens (1-FOV) /

Fixed Athermalized IR Lens 20mm f/1.1

Fixed Athermalized IR Lens 20mm f/1.1

Fixed Athermalized IR Lens 20mm f/1.1
CategoriesFixed Athermalized LWIR Lens (1-FOV)
BrandQuanhom Customized Infrared Optics & Infrared Lens
ModelGLA2011
LWIR Lens20mm f/1.1
ApplicationsSecurity and Surveillance
Mechanical InterfaceThread
Update Time2022/5/21
Detail Information
  • Specifications
  • Download file
  • FAQ
  • Video
  • Applications
Specifications
HFOV
160x120
320x240
336x256
384x288
640x480
640x512
1024x768
1280x1024
12μm
5.5°
11.0°
11.5°
13.1°
21.7°
21.7°
/
/

Optical

Focal Length[mm]
20
F/#
1.1
Wavelength
8-12μm
Format
Φ14

Mechanical

Focus Mechanism
Fixed Athermalized

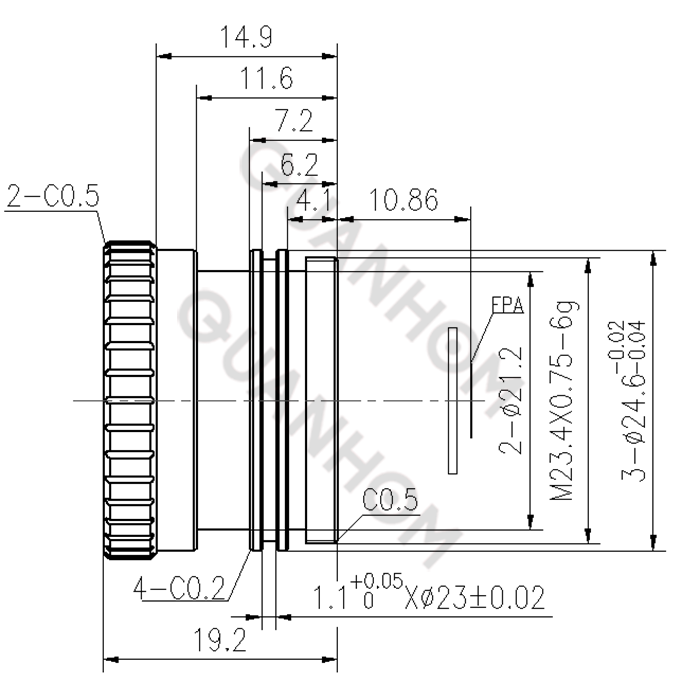

Dimensions [mm]
Φ26x19.2
Weight
<18g

Environmental

Operating Temperature
-45℃ to +55
Storage Temperature
-55℃ to +70
External Coating
DLC/AR
Sealing
IP67
Download document
file name
type
download
PDF
FAQ
What are the differences between GLA2011 and GLA2011ZA?

GLA2011 and GLA2011ZA are structurally different.

GLA2011 COATED DLC/AR film,GLA2011ZA coated AR film.

GLA2011 screw mounting M23.4*0.75-6g 4.1mm,GLA2011ZA is screw mounting.

APPLICATIONS
Airborne
Enhanced Vision
Hand-held Thermal Imaging Devices
Homeland Security
Maritime & Naval
Security & Surveillance
