Motorized Focus IR Lens 120mm f/1.0

Motorized Focus IR Lens 120mm f/1.0
CategoriesMotorized LWIR Lens (1-FOV)
BrandQuanhom Optronics
ModelGLE12010D2
Motorized Focus IR Lens120mm f/1.0
ApplicationsSecurity and Surveillance
InterfaceThread
Focus MechanismMotorized
Update TimeJul 17,2024
Detail Information
  • Specifications
  • Download file
  • FAQ
  • Video
  • Applications
Specifications
HFOV
160x120
320x240
336x256
384x288
640x480
640x512
25μm
1.9°
3.8°
4.0°
4.6°
/
/
17μm
1.3°
2.6°
2.7°
3.1°
5.2°
5.2°
12μm
0.9°
1.8°
1.9°
2.2°
3.7°
3.7°

Optical

Focal Length[mm]

120mm

F/#
1.0
Format
Φ14
Focus Range

5m -Infinity

Wave Length
8-12μm

Mechanical

Interface

Thread Flange

Focus Mechanism
Motorized

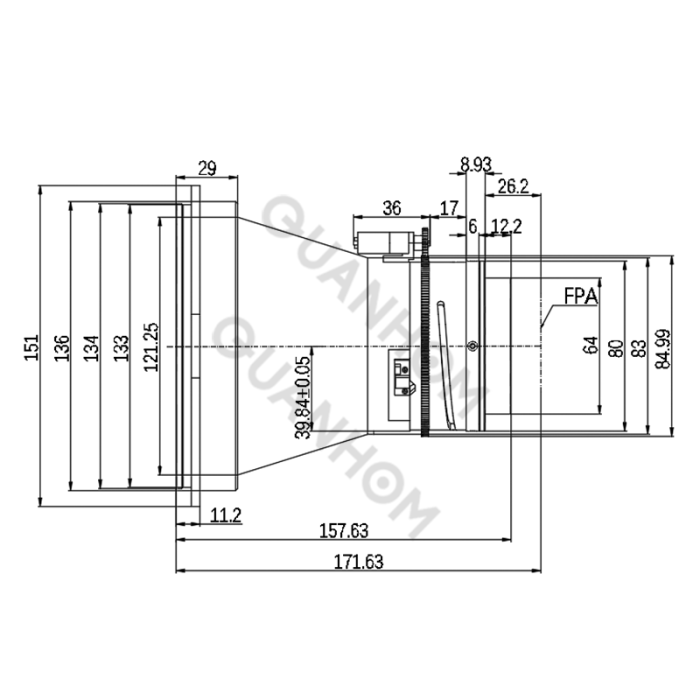

Dimensions [mm]

Ø151x157.63

Weight

1.21kg

Electrical & Communication

Power Input

DC 9V(6-12V)

Communication
NA

Environmental

Operating Temperature
-40℃ to +60
Storage Temperature

-50°C to +80°C

Front Element Sealing
IP67
Download document
FAQ
- Why the lens autofocus is not clear?

There are many reasons why the lens autofocus is not clear, the main reasons are as follows which can be checked one by one:

1. During the focusing process, there is a large moving target in the lens screen (occupying more than 1/3 of the picture), can be refocused;

2.If the lens is used for a long time, the gear, CAM and other transmission parts wear and tear, resulting in unclear focus, the module or control board parameters can be adjusted to make the focus clear again;

3. Hardware problems, such as potentiometer does not work, replace the hardware that does not work.

- Why can not the lens control board or module connect to the computer?

There are many reasons why the lens control board and the computer cannot be connected, the main reasons are as follows which can be checked one by one:

1. Replace the USB port, which may be incompatible with the data cable;

2.Replace the data cable,maybe the data cable is not compatible with the computer or the cable data is wrongly selected;

3. Confirm the wiring of the module or the control board, maybe the wiring is loose;

4.Module or control board hardware problem, replace the hardware.
