Fixed Athermalized IR Lens 19mm f/1.0
| Categories | Fixed Athermalized LWIR Lens (1-FOV) |
|---|---|
| Brand | Quanhom Optronics |
| Model | GLA1910-2BFL8 |
| LWIR Lens | 19mm f/1.0 |
| Applications | Security and Surveillance |
| Mechanical Interface | Thread |
| Update Time | Apr 27,2024 |
Detail Information
- Specifications
- Download file
- FAQ
- Video
- Applications
Specifications
|
HFOV
|
160x120
|
320x240
|
336x256 | 384x288 | 640x480 | 640x512 | 1024x768 |
1280x1024
|
25μm | 12.0° | 23.8° | 24.9° | 28.4° | ||||
|
17μm
|
8.2°
|
16.3°
|
17.1° | 19.5° | 32.0° | 32.0° | / |
/
|
Optical |
|||
|
Focal Length[mm]
|
19
|
||
|
F/#
|
1.0
|
||
Wavelength | 8-12μm | ||
Format | Φ14 | ||

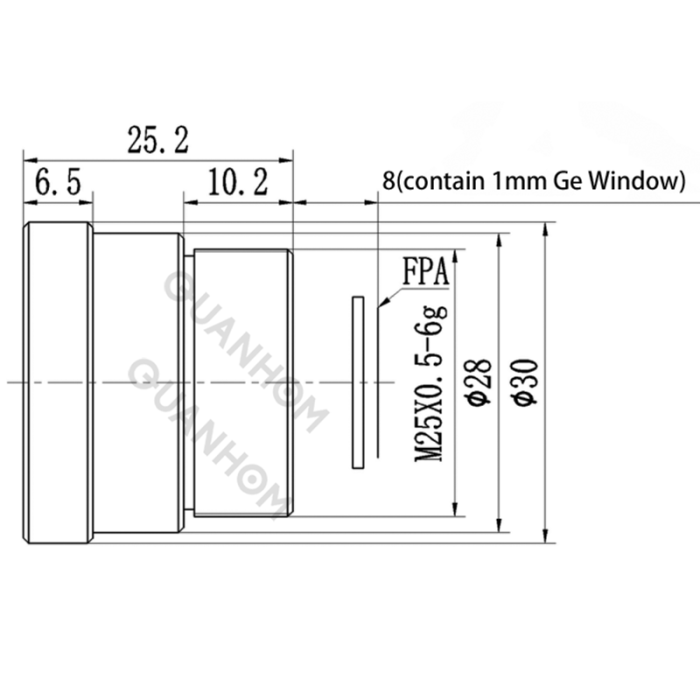

Mechanical |
|||
Interface | Thread | ||
|
Fixed Athermalized
|
||
|
|
||
|
Weight
|
|
||
Environmental |
|||
|
Operating Temperature
|
-40℃ to +80℃
|
||
Storage Temperature | -45℃ to +85℃ | ||
|
External Coating
|
AR
|
||
Sealing | IP67 | ||
Download document
|
file name
|
type |
download
|
||
PDF |
|
|||
FAQ
APPLICATIONS
Airborne
Enhanced Vision
Hand-held Thermal Imaging Devices
Homeland Security
Maritime & Naval
Security & Surveillance
