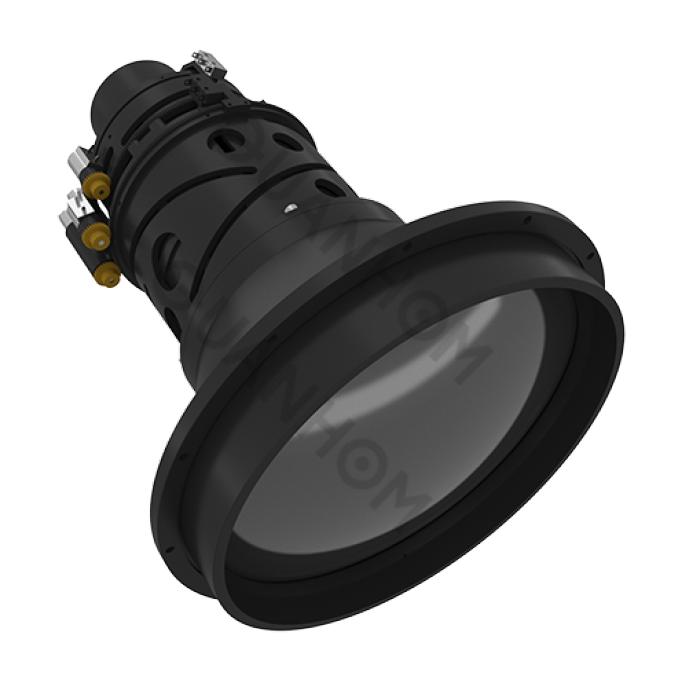

Auto Focus IR Zoom Lens 56-300mm f/1.0-1.4

Home / all / LWIR Lens | Infrared Optics / Continuous Zoom LWIR Lens /

Auto Focus IR Zoom Lens 56-300mm f/1.0-1.4

Auto Focus IR Zoom Lens 56-300mm f/1.0-1.4

Auto Focus IR Zoom Lens 56-300mm f/1.0-1.4
Auto Focus IR Zoom Lens 56-300mm f/1.0-1.4Auto Focus IR Zoom Lens 56-300mm f/1.0-1.4Auto Focus IR Zoom Lens 56-300mm f/1.0-1.4Auto Focus IR Zoom Lens 56-300mm f/1.0-1.4Auto Focus IR Zoom Lens 56-300mm f/1.0-1.4
CategoriesContinuous Zoom LWIR Lens
BrandQuanhom Optronics
ModelGCZ56-30014KD
LWIR Lens56-300mm f/1.0-1.4
ApplicationsSecurity and Surveillance
Focus MechanismMotorized
Update Time2022/8/12
Detail Information
  • Specifications
  • Download file
  • FAQ
  • Video
  • Applications
Specifications
HFOV
160x120
320x240
336x256
384x288
640x480
640x512
1024x768
1280x1024
12μm
0.4°-2°
0.7°-3.9°
0.8°-4.1°
0.9°-4.7°
1.5°-7.8°
1.5°-7.8°
2.3°-12.5°
/
17μm
0.5°-2.8°
1°-5.6°
1.1°-5.8°
1.2°-6.7°
2.1°-11.1°
2.1°-11.1°
/
/

Optical

Focal Length[mm]
56-300
F/#
1.0-1.4
Wavelength
8-12μm

Mechanical

Interface
Flange
Focus Mechanism
Motorized
Dimensions [mm]
Ø234 x 343.99 (to UFPA) (Front flange Φ258)
Weight
<6100g

Electrical & Communications

Power Input
DC 12V
Communications
Optional

Environmental

Operating Temperature
-40℃ to +60
Storage Temperature
-45℃ to +65
External Coating
DLC
Front Element Sealing
IP67
Download document
FAQ
- Why is the thermal camera zoom lens autofocus not clear?

There are many reasons why the lens autofocus is not clearl; the main reasons are as follows which can be checked one by one:

1. During the focusing process, if there is a large moving target in the lens screen (occupying more than 1/3 of the picture), just refocus;

2. If the lens is used for a long time, and the gear, CAM and other transmission parts wear and tear, resulting in unclear focus, adjust the module or control board parameters to make the focus clear again;

3. For hardware problems such as the potentiometer not working, replace the hardware that does not work.

- Why can not the lens control board or module connect to the computer?

There are many reasons why the lens control board and the computer cannot be connected; the main reasons are as follows which can be checked one by one:

1. Replace the USB port, which may be incompatible with the data cable;

2. Replace the data cable, which may be incompatible with the computer or of the wrong type;

3. Check if the wiring of the module or the control board is loose;

4. For module or control board hardware problems, replace the hardware.

VIDEO
APPLICATIONS
Homeland Security
Maritime & Naval
Security & Surveillance
