LWIR Zoom Lens 30-300mm f/1.35

LWIR Zoom Lens 30-300mm f/1.35
CategoriesContinuous Zoom LWIR Lens
BrandQuanhom Optronics
ModelGCZ1030135KD
LWIR Lens30-300mm f/1.35
ApplicationsSecurity and Surveillance
Focus MechanismMotorized
Update TimeJul 17,2024
Detail Information
  • Specifications
  • Download file
  • FAQ
  • Video
  • Applications
Specifications
HFOV
160x120
320x240
336x256
384x288
640x480
640x512
1024x768
1280x1024
25μm
0.8°-7.6°
1.5°-15.2°
1.6°-15.9°
1.8°-18.2°
3.1°-29.9°
/
/
/
17μm
0.5°-5.2°
1°-10.4°
1.1°-10.9°
1.2°-12.4°
2.1°-20.6°
/
/
/
12μm
0.4°-3.7°
0.7°-7.3°
0.8°-7.7°
0.9°-8.8°
1.5°-14.6°
1.5°-14.6°
2.3°-23.1°
2.9°-28.7°

Optical

Focal Length[mm]
30-300
F/#
1.35
Wave Length
8-12μm
Focus Range
3m-Infinity/30m-Infinity

Mechanical

Interface
Flange
Focus Mechanism
Motorized

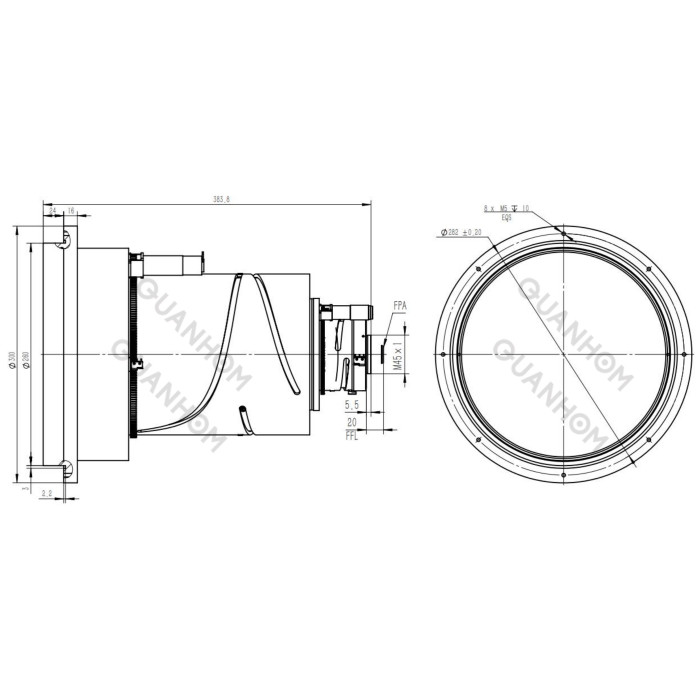

Dimensions [mm]
Ø258x400(Front Flange Ø286)
Weight
12kg

Electrical & Communications

Power Input
DC 12V Average

Environmental

Operating Temperature
-40℃ to +60
Storage Temperature
-50℃ to +70
External Coating
DLC
Front Element Sealing
IP67
Download document
FAQ
- Why is the Motorized Continuous Zoom Athermalized Lens autofocus not clear?

There are many reasons why the lens autofocus is not clear; the main reasons are as follows which can be checked one by one:

1. During the focusing process, if there is a large moving target in the lens screen (occupying more than 1/3 of the picture), just refocus;

2. If the lens is used for a long time, and the gear, CAM and other transmission parts wear and tear, resulting in unclear focus, adjust the module or control board parameters to make the focus clear again;

3. For hardware problems such as the potentiometer not working, replace the hardware that does not work.

- Why can not the lens control board or module connect to the computer?

There are many reasons why the lens control board and the computer cannot be connected; the main reasons are as follows which can be checked one by one:

1. Replace the USB port, which may be incompatible with the data cable;

2. Replace the data cable, which may be incompatible with the computer or of the wrong type;

3. Check if the wiring of the module or the control board is loose;

4. For module or control board hardware problems, replace the hardware.
